Carton live storage racking High pick rates, improved work efficiency

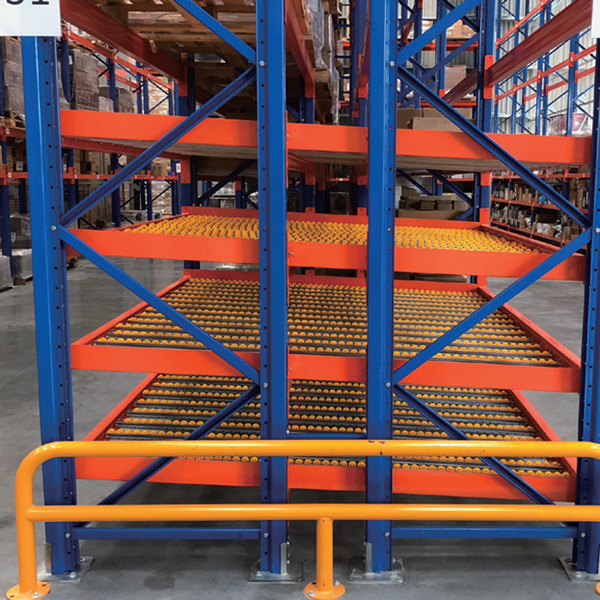

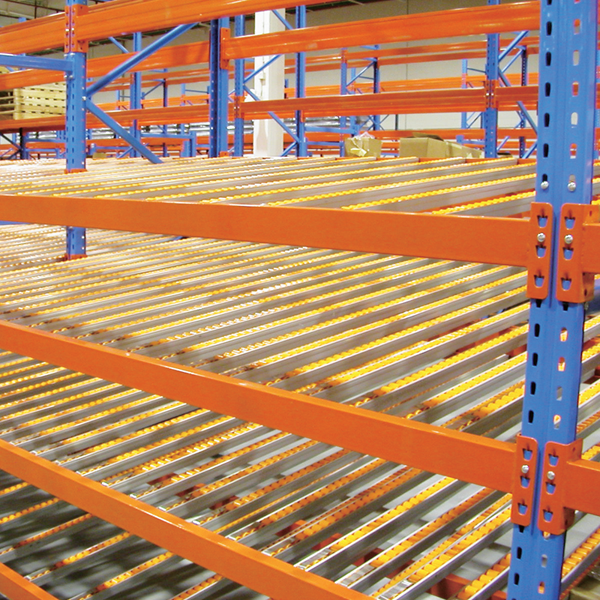

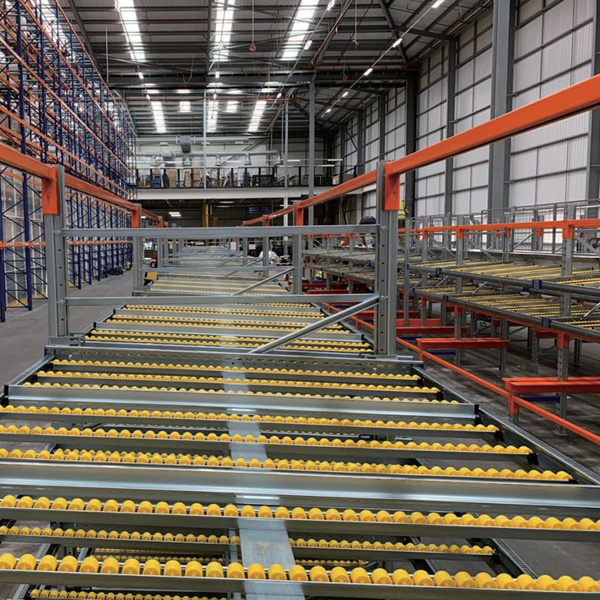

Cartons are stored on inclined tracks with rollers. When a carton is removed, the carton immediately behind it gently rolls into position at the front, ensuring automatic stock rotation and the constant availability of stock for picking.

Carton live storage systems (CLS) are particularly suited for fast and medium movers, as they can help achieve high picking rates. The picking performance can be further increased by partially or fully automating the system.

Goods are rotated according to the First In - First Out (FIFO) approach which enables compliance with best-before dates, particularly important for the food and pharmaceutical sectors.

Carton live storage systems help to achieve a significant increase in efficiency and space utilisation in the warehouse. Separate storage and retrieval sides ensure clearly organised processes and travel times of order pickers are minimised. The picking speed also increases as the goods are presented by type in each flow lane.


Carton live storage systems (CLS) provide medium and fast moving items in First-in - First-out order (FIFO) according to the “product-to-person” principle. Separate loading and retrieval aisles as well as single-reference storage lanes ensure a very high level of organisation and a good overview of all items on stock. Strict adherence to the FIFO principle means that best-before dates are reliably observed. These features enable customer orders to be processed very quickly and with a low error rate. Since items in carton live storage systems are fed into inclined roller lanes, picking performance is very high. The picking performance can be further increased by partially or fully automating the picking process.


Excellent space utilisation and high product availability thanks to the integrated buffer stock
Carton live storage systems provide items sorted by type in adjacent lanes. There are no aisles between the lanes. As a result, space utilisation is much higher compared to conventional static racking. Compact storage results in space savings of around 30 per cent. It is also possible to combine carton live storage with pallet racking. In this case, static pallet racking is fitted with flow levels at operator reach height. While goods are presented for picking at the floor level, the upper pallet racking levels serve as a buffer stock for replenishing the flow levels. With sufficient supplies provided from the buffer stock, there are always sufficient products available and ready for shipment. In addition, the warehouse height is optimally utilised.


Ergonomic design
GLOBAL Carton live storage racking stands out for its ergonomic design. The picking surface has been optimised to create a natural grip curve when picking. In addition, GLOBAL roller tracks feature rollers with low-noise plastic axles to minimise noise disturbance. The well-organised presentation of all items on the retrieval side of the racking and the short travel routes help to reduce the strain on employees in their daily work processes. In addition, live storage racking can be automated to further improve ergonomics.

To know more please contact us.Email:[email protected]
