Longspan Shelving

With our Longspan shelving's modular design, and fast and easy assembly you can achieve the maximum possible storage capacity, regardless of the space you have available.

The Longspan Shelving system allows for the easy adjustment of storage heights and configurations as your requirements change; providing a system that moves and changes with you.

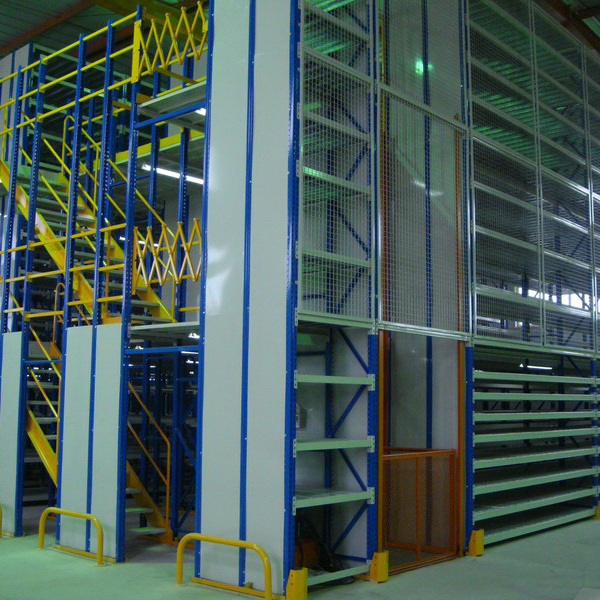

Longspan is equally suited for warehouse and office environments; easily configurable for a number of different applications. From low level hand-loaded shelving, to high-rise systems.

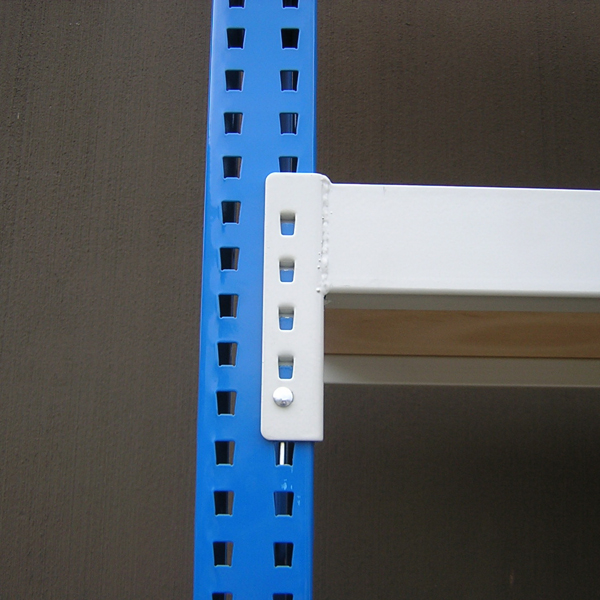

Incorporating varying frame and beam sizes, customising the system for your exact needs is really straightforward. Medium- and Longspan bays can be combined in the same rack, and a bolt-free, lock-in system ensures support beams remain in position. Longspan frames are manufactured from pre-galvanised steel and beams are powder-coated grey white (RAL 9002) or orange (RAL 2001).

Our Longspan shelving has been designed and tested to comply with the recommendations of the FEM Shelving Design Code 10.2.06.

Product specifications

Standard Dimensions

Depth 450 / 600 / 750 / 900/ 1000 / 1200 mm

Length 1200 / 1500 / 1800 / 2400 / 2700 / 3000

Height 1500 / 2000 / 2500 / 3000

Four upright sections to give the optimum configuration for customer

50/150

50/175

60/175

60/200

Loading

Load per level Up to 1500 kg

Load per bay Up to 6900 kg

Finish

Uprights - Galvanised

Beams – Painted RAL 9002 or RAL 2001

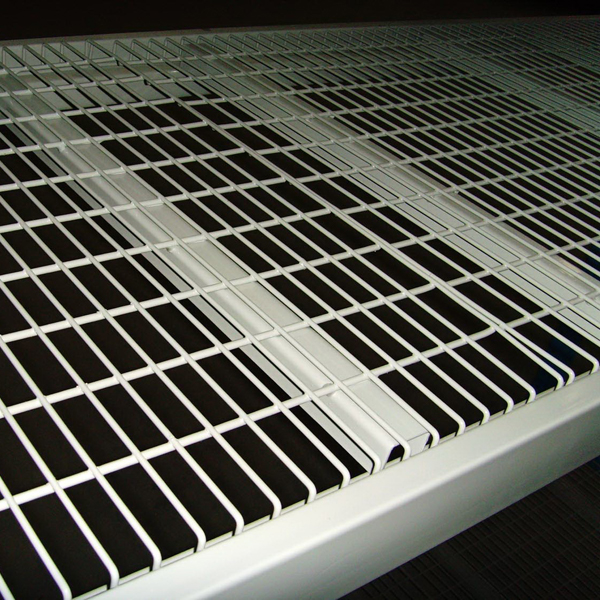

Accessories

Galvanised and Painted

Other dimensions can be manufactured according to customer and project requirements.

To know more please contact us.Email:[email protected]
